In this guide, we will cover how to create Blocks and Bands manually within the MIS. These can be created and used as a means of searching for a student, they can also be created outside of the MIS if you use the timetabling software e-Timetable.
See also: e-Timetable beginners guide and How to view existing Groups

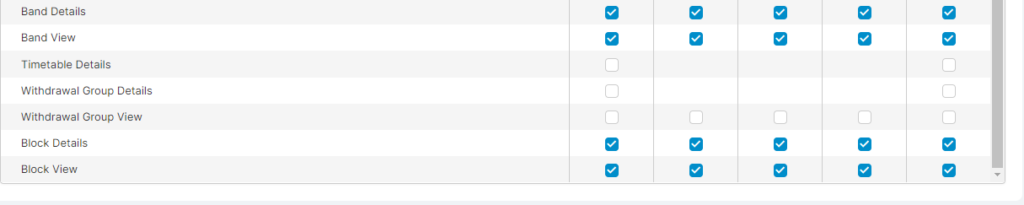

Access: In order to create Blocks and Bands on the Groups page, the minimum permissions you will need are found in the Curriculum Module of Config>Setup>Roles and Permissions.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/WpzmCpGr-captur-1024x71.png)
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/yuOfHH6u-Capture-1-1024x205.png)
Creating a Band
Disclaimer; Any names/dates etc used below are only examples, the main objective of the guide is to outline the process for creating Blocks and Bands.
To begin with creating a Block or Band, you will need to go to the Groups page.

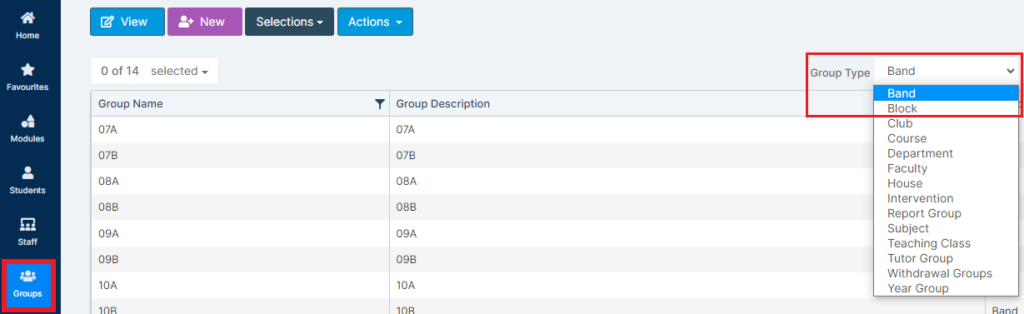

Once you are there, change the Group Type to either Block or Band. In the example below, a Band will be created.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/J2Q26mXZ-A-3-1024x314.png)
Use the New button at the top of the page to being the creation process.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/W6cxQK9C-b-2.png)

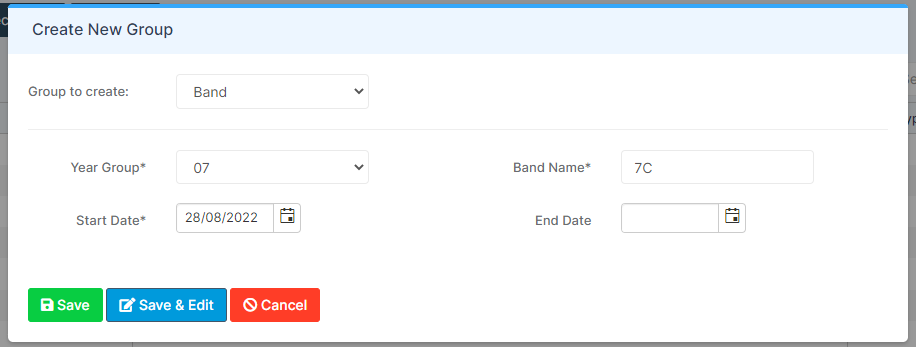

In the example below a Band is being created, once you have set the basic details such as Name and Year Group, press Save & Edit.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/5RDUlWzP-c-2.png)
This will take you into the Band and allow you to amend the details within it which are divided into panels;
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/WXH1HXIE-image-50.png)

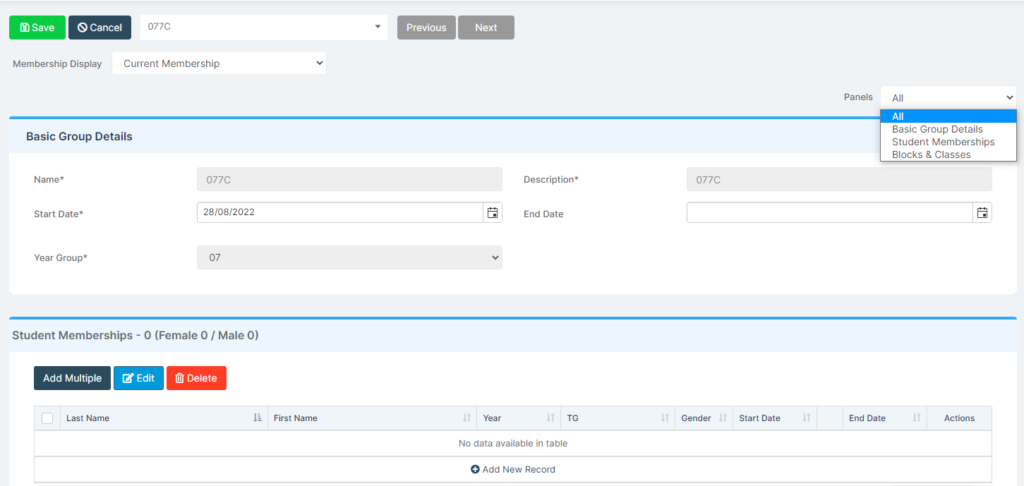

Basic Group Details is the first panel which was already populated when the Band was first created. It now cannot be edited.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/F5pVe5Ve-d-1-1024x486.png)

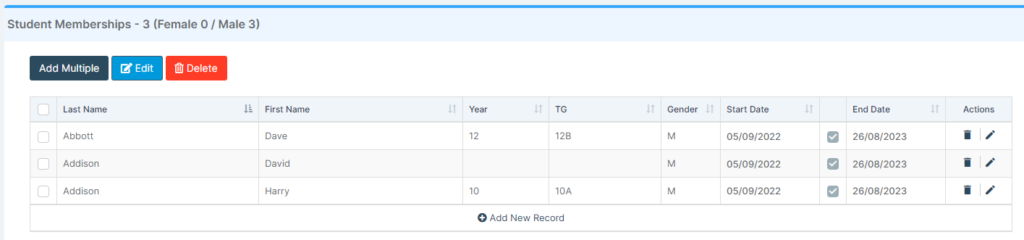

The second panel is for Student Memberships. This allows you to add/assign specific students to the Band for a date range of your choice.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/xkiewl8Y-image-51-1024x240.png)

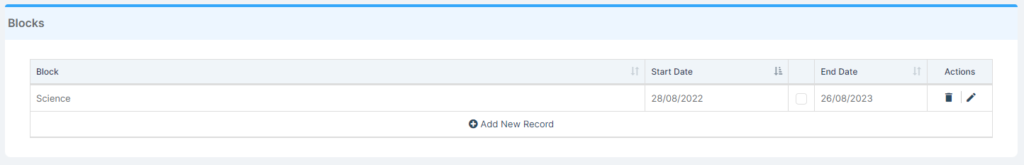

The next panel is for Blocks and allows you to assign the Band to a Block.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/2tUyqCqv-g-1024x165.png)

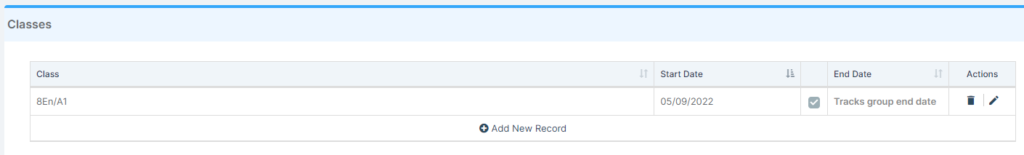

Finally, the last panel is for Classes. This allows you to assign specific Teaching Classes against the Band.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/TVfYUWTN-image-54-1024x155.png)
Once you are done, scroll to the top of the page and press Save.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/OV1v0kDi-image-57.png)
Creating a Block
Disclaimer; Any names/dates etc used below are only examples, the main objective of the guide is to outline the process for creating Blocks and Bands.
Creating a Block is also done via the Groups page.

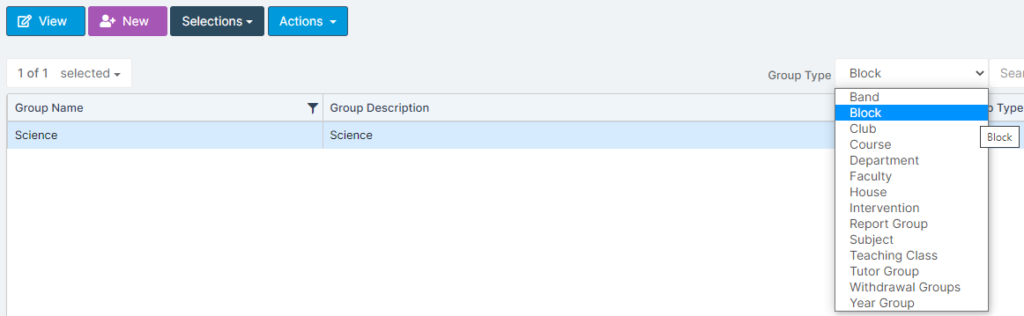

Set the Group Type to Block and press New.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/eSSFaFFZ-i-1024x316.png)

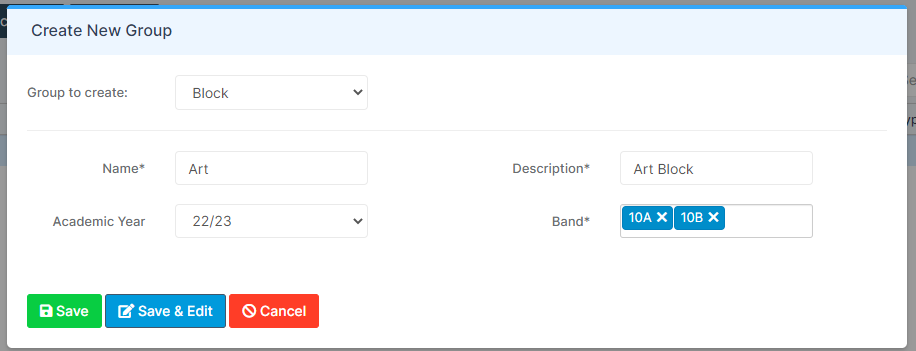

This will provide you with a small window where you can enter the basic details of the Block you are creating.
Once the details are added, press Save & Edit.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/MXsglENU-image-52.png)
This will take you in to the actual Block and allow you to see/amend the data within it, which is organised by panels;

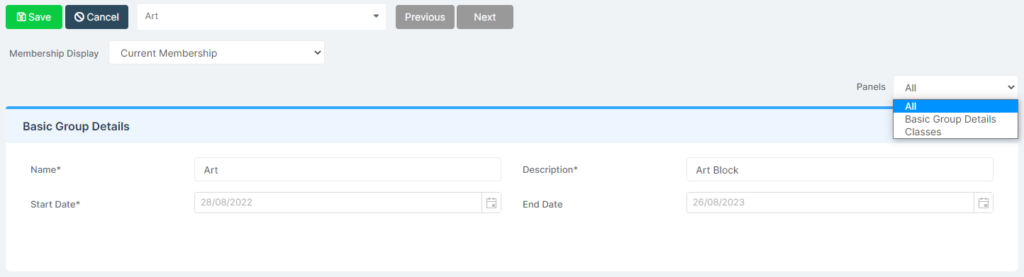

Basic Group Details is the first panel and is essentially the same data as the previous screen, only the Name and Description can be changed now.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/YAUO0Jdx-image-53-1024x277.png)

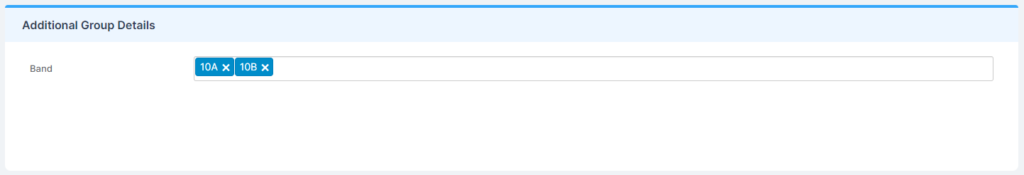

You then have Additional Group Details, which is where you can link Bands to the Block.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/J0nAZNsg-image-55-1024x175.png)

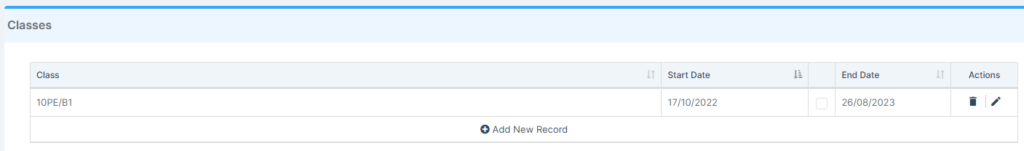

Lastly, there is a Classes panel which lets you add individual Teaching Classes to this Block.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/vYt67GiA-image-56-1024x151.png)

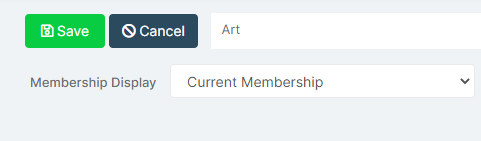

Once you have entered all the relevant details, scroll up to the top of the page and press Save.
![](https://d3kchveacp7yrb.cloudfront.net/2022/10/9TgNUgP0-image-58.png)
This concludes how to create Blocks and Bands manually within the MIS.
